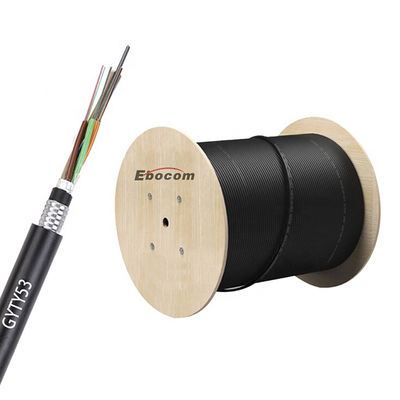

Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system

  • Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
  • Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
  • Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
  • Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
  • Direct Duct GYTY53 Fiber Optic Cable 12 24 36 48 core Stranded laying wiring system
起源の場所 中国上海
ブランド名 EBOCOM
証明 ISO TLC
モデル番号 GYTY53
最小注文数量 2000m
価格 EXW ≥2000m $0.19/M ≥5000m $0.18/M
パッケージの詳細 1鉄木ドラムまたは非煙化木ドラム,通常の木ドラム. 2.ドラムのサイズを設計することができ,コンテナに適した詳細を計算します.
受渡し時間 5~8日
支払条件 T/T
供給の能力 8000KMS/日

無料のサンプルとクーポンを私に連絡してください.

WhatsAPPについて:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
最低注文量 1km 包装の細部 木製のドラム
配達時間 3～7営業日 支払の言葉 L/C、T/T、ウェスタンユニオン
原産地： 山東の陶磁器 ブランド名： Ebocom/OEM
認証： ISO9001,ISO45001,ISO14001 標準化されている モデル番号： GYTY53-24B1
ハイライト

Direct Duct GYTY53 fiber optic cable

,

12 core stranded fiber optic cable

,

Outdoor fiber optic cable wiring system
メッセージ
製品の説明

The GYTY53 fiber optic cable is primarily used for direct burial and duct installations in harsh outdoor environments due to its double-armored, double-sheathed, and water-resistant construction. Key applications include long-distance backbone networks, telecommunications infrastructure, and campus and industrial networks where mechanical, rodent, and moisture protection are essential



Features:

Direct burial: The robust armor and double sheath provide protection against crushing, mechanical impact, and rodents when buried directly in the ground.
Duct installations: It is ideal for installation in conduits where protection from moisture and rodents is necessary.
Long-distance backbones: Its durable design makes it suitable for long-haul and inter-office communication lines that require a reliable and resilient cable.
Campus and industrial networks: It is used to connect networks over large areas like university campuses or industrial sites, often in "greenfield" situations where underground cabling is required.
Telecom and municipal networks: It serves as a primary choice for building out the infrastructure for telecommunications and municipal networks.



Application:

Suitable for direct buried, overhead, pipeline and other laying methods



MainTechnical Parameters:

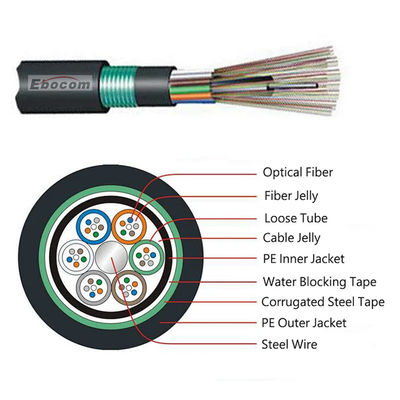

Cable construction details :

Number of Fiber 24-144core
Filling Rope 4-0
Moisture Barrier Water blocking system
Central strength member Material Steel wire/FRP
Size 1.4mm
Tube-filling Tube Filling Compound
Inner sheath Material PE/HDPE
Diameter 2.0mm
Loose tube Material PBT
Diameter Ф2.2(outer/inner)
Outer armored Material Aluminium tape/Corrugated steel tape
Outer sheath Material PE/HDPE
Diameter 1.7±0.2mm



Structure and parameters GYTY53 optical cable

Name Fiber Count Nominal diameter (mm) Nominal weight (kg/km) Maximum number of cores Allowable tensile force (short/long term)



N

 Allowable flattening force (short/long term)



N/100mm
GYTY53 2-36 12.7 173 6 3000/1000 3000/1000
38-72 13.9 211 12 3000/1000 3000/1000
74-96 15.5 251 12 3000/1000 3000/1000
98-120 17.2 299 12 3000/1000 3000/1000
122-144 18.8 345 12 3000/1000 3000/1000
>144 Customized as customer’s request
