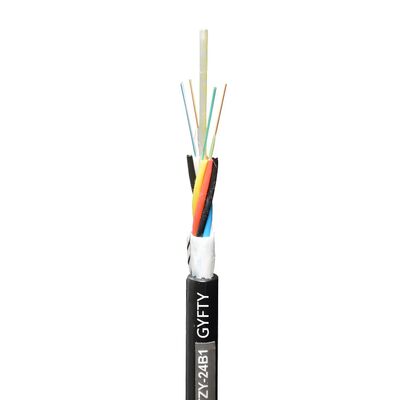

4~144 Core GYFTZY Flame-Retardant Non-Metallic Fiber Optic Cable

  • 4~144 Core GYFTZY Flame-Retardant Non-Metallic Fiber Optic Cable
  • 4~144 Core GYFTZY Flame-Retardant Non-Metallic Fiber Optic Cable
起源の場所 中国
ブランド名 Ebocom
証明 ISO
モデル番号 ギフチ
最小注文数量 2000m
価格 0.02 USD per Meter
パッケージの詳細 パライウッドドラムまたはカスタマイズされた
受渡し時間 3〜10日
支払条件 LC、T/T
供給の能力 1日100 km

無料のサンプルとクーポンを私に連絡してください.

WhatsAPPについて:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
ファイバーの種類 G652d 繊維数 4～144コア
ジャケット素材 PE/LSZH パッキング 2-4km/woodenドラム
動作温度 -40℃ +70℃ 強度メンバー FRP
OEM はい 構造 縛られたゆるいチューブ
ハイライト

flame-retardant fiber optic cable

,

non-metallic outdoor fiber cable

,

4-144 core optical cable
メッセージ
製品の説明

Product Overview

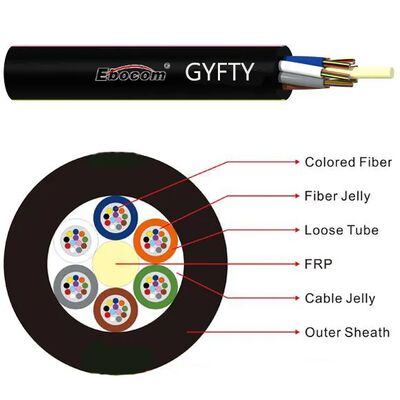

The GYFTZY flame-retardant non-metallic fiber optic cable is designed for safe, stable, and interference-free communication in indoor and building environments. Built with a central loose tube, FRP strength members, and an LSZH flame-retardant outer jacket, this cable provides reliable performance where strict fire-safety regulations apply.

We support custom flame-retardant levels (such as IEC 60332-1 / 60332-3 / B1 / B2) based on your project requirements.
Our factory is equipped with a vertical flame test chamber to ensure all GYFTZY cables meet the required fire-retardant standards before shipping.

This cable contains zero metal, making it ideal for complex indoor environments, electrical rooms, data centers, industrial facilities, and buildings where electromagnetic immunity is essential.

Key Features

  • Non-metallic design — FRP strength members, no induced voltage, no electromagnetic interference.

  • High flame-retardant LSZH jacket, customizable flame rating based on national and international standards.

  • Stable fiber protection with gel-filled or dry loose tube options.

  • Lightweight, flexible, and easy to install for indoor riser, vertical shafts, and pipeline environments.

  • Excellent mechanical performance for pulling, bending, and long-term reliability.

  • Suitable for single-mode (G.652D, G.657A1/A2) or multimode (OM1/OM2/OM3/OM4) fibers.

Typical Applications

  • Indoor fiber backbone cabling

  • Vertical riser cabling in high-rise buildings

  • Data centers & equipment rooms

  • Fire-safety-required environments (hospitals, schools, public buildings)

  • Industrial automation networks

  • Areas requiring non-metallic and flame-retardant cables

Technical Specifications (GYFTZY Non-Metallic Flame-Retardant Cable)

Item Specification
Cable Type GYFTZY Non-Metallic Flame-Retardant Optical Cable
Fiber Types G652D / G657A1 / G657A2 / OM2 / OM3 / OM4
Fiber Count 4–144 cores (customizable)
Strength Members FRP rods (non-metallic)
Structure Central loose tube, gel-filled or dry structure
Outer Jacket Material LSZH flame-retardant
Flame Rating Options B1, B2 (customizable)
Outer Diameter Based on fiber count & FRP size (customizable)
Tensile Strength 600–1500N (depending on design)
Crush Resistance 1000–2000 N/10cm
Operating Temperature -20°C ~ +60°C
Installation Temperature -10°C ~ +50°C
Electric Performance 100% non-metallic, no grounding needed
Compliance ITU-T standards, IEC, ISO9001

Why Choose Ebocom GYFTZY?

  • In-house flame-retardant testing (vertical burn test machine) ensures reliable safety performance.

  • Full OEM/ODM support including jacket printing, flame class, color, and fiber specifications.

  • Over 12 years of manufacturing experience, exporting to more than 20+ countries.

  • Fast delivery, strong production capacity, and stable quality consistency.
