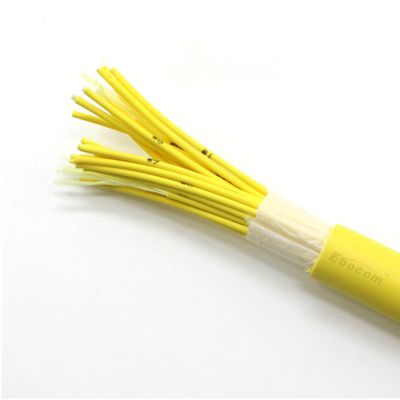

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket

起源の場所 中国
ブランド名 Ebocom
証明 ISO
モデル番号 GJBFJH
最小注文数量 2000m
価格 0.1 USD per Meter
パッケージの詳細 パライウッドドラムまたはカスタマイズされた
受渡し時間 3〜10日
支払条件 L/C、T/T
供給の能力 1日50 km

無料のサンプルとクーポンを私に連絡してください.

WhatsAPPについて:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
コア 2-48 繊維 強度メンバー アラミド繊維/ポリエステル繊維
シース LSZH 温度 -20~70℃
資格 ISO 繊維バッファ 堅い緩衝繊維
ファイバータイプ sm 繊維色 クロマトグラムを参照
ハイライト

Indoor breakout fiber optic cable

,

Single mode LSZH fiber cable

,

4-48 core fiber optic cable

メッセージ
製品の説明

The GJBFJH indoor breakout fiber optic cable is specially designed for indoor fiber distribution and patching systems that require flexibility, safety, and reliability.

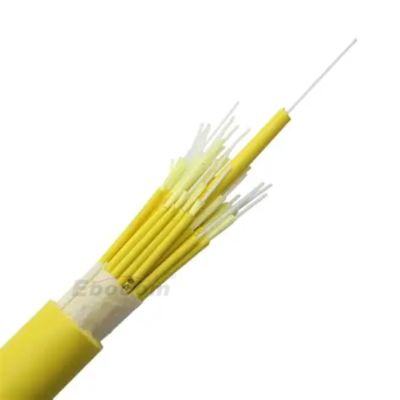

This cable adopts a central FRP (Fiber Reinforced Plastic) strength member, surrounded by multiple 2.0mm sub-units, each consisting of a tight-buffered fiber, aramid or polyester yarns, and an LSZH (Low Smoke Zero Halogen) outer jacket.
It ensures easy termination, excellent mechanical strength, and low signal loss, making it ideal for data centers, FTTH networks, office buildings, and telecom rooms.

Key Features

  • Stable performance: High-quality single-mode G.657A1 or G.652D fiber ensures low attenuation and stable transmission.

  • Reliable strength: Central FRP member and aramid yarn reinforcement provide excellent tensile and crush resistance.

  • Fire safety: LSZH sheath offers flame retardant, low smoke, and halogen-free protection for indoor environments.

  • Easy handling: Each sub-unit can be directly connected, terminated, or re-routed, simplifying installation and maintenance.

  • Wide applications: Suitable for LAN networks, distribution frames, FTTH wiring, and indoor backbone cabling.

Applications

  • Data centers and telecom rooms

  • Building backbone cabling

  • FTTH and FTTB systems

  • Indoor distribution and patching networks

  • Optical communication equipment interconnection

Technical Parameters

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type Single Mode (G.657A1 / G.652D)
Fiber Count 2–48 cores (customizable)
Sub-unit Structure 2.0mm tight-buffered fiber + Aramid/Polyester yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Jacket Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.0mm (depending on fiber count)
Tensile Strength ≥ 1500N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Color Options Yellow (SM)
