GYXTW Fiber Optic Cable – 2-24 Core Loose Tube Steel Tape Armored PE Jacket Outdoor Long Distance
無料のサンプルとクーポンを私に連絡してください.
WhatsAPPについて:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| 応用 | テレコム共同 | 繊維数 | 2～24コア |
|---|---|---|---|
| ジャケット | PE | モデル | シングルモード |
| ゆるいチューブ材料 | PBT | ||
| ハイライト | steel armored outdoor fiber optic cable,24 core loose tube fiber cable,long distance pe jacket fiber optic |
||
製品の説明
Product Name
GYXTW Fiber Optic Cable – 2-24 Core Loose Tube Steel Tape Armored PE Jacket for Outdoor Long Distance
Product Description

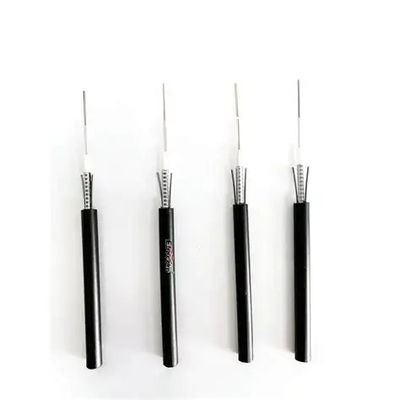

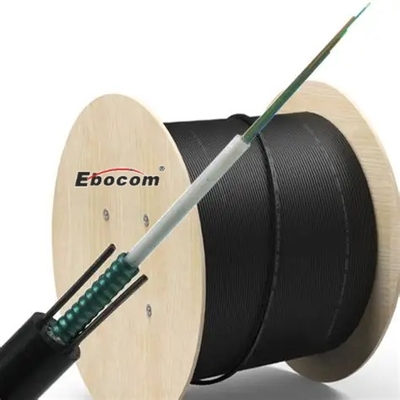

GYXTW fiber optic cable adopts a central loose tube structure, with fibers protected inside water-blocking gel. The cable is reinforced with double-sided steel tape armor and covered by a durable PE jacket, ensuring excellent mechanical strength, moisture resistance, and long-term reliability. It is specially designed for outdoor long-distance communication, suitable for duct installation and direct burial.
Technical Specifications
-
Cable Type: GYXTW
-
Fiber Count: 2~24 cores
-
Fiber Type: Singlemode G.652D / G.657A1 (optional)
-
Strength Member: Steel tape + FRP
-
Jacket Material: Black PE, UV resistant
-
Crush Resistance: 2000 N/100 mm
-
Tensile Strength: ≥ 1500 N (depending on core count)
-
Operating Temperature: -40℃ ~ +70℃
Applications
-
Long-distance outdoor communication networks
-
Duct and direct buried installations
-
Backbone and access networks
-
Railway, highway, and power line communication systems
Key Features
-
High tensile strength and crush resistance
-
Steel tape armor for excellent mechanical protection
-
PE outer sheath with UV resistance for outdoor durability
-
Stable transmission performance over long distances
-
Available in 2~24 fiber cores
