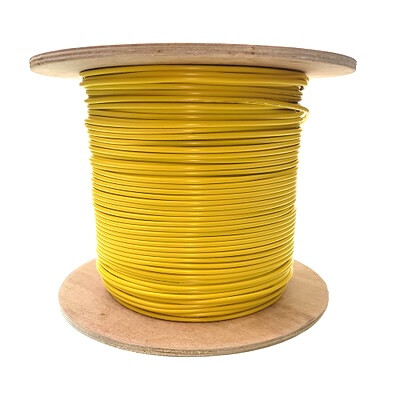

Branch Indoor Optic Cable 6 8 12 24 36 cores Single Mode G652D For Distribution

起源の場所 シャンドン,中国
ブランド名 EBOCOM
証明 ISO TLC
モデル番号 分岐ケーブル
最小注文数量 2000m
価格 EXW ≥2000m $0.16/M ≥5000m $0.14/M
パッケージの詳細 1鉄木ドラムまたは非煙化木ドラム,通常の木ドラム. 2.ドラムのサイズを設計することができ,コンテナに適した詳細を計算します.
受渡し時間 5~8日
支払条件 T/T
供給の能力 日当たり5000KMS

無料のサンプルとクーポンを私に連絡してください.

WhatsAPPについて:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
製品名 分岐ケーブル ジャケット ポリ塩化ビニール/LSZH
フォースメンバー アラミド繊維 繊維 シングルモード/マルチモード
ブランド Ebocom または OEM
ハイライト

Indoor Optic Cable 36 Cores

,

24 Branch Indoor Optic Cable

,

6 Branch Indoor Optic Cable

メッセージ
製品の説明

Description

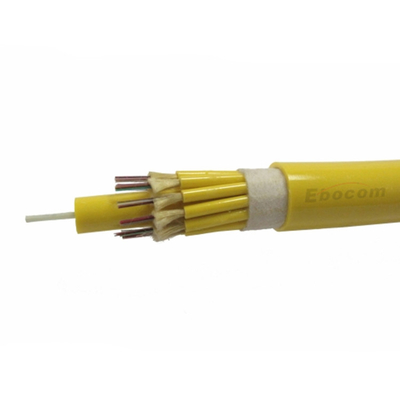

This is a multi-purpose optical fibre branch cable with a twisted cable structure. It is composed of tight buffer fibre, FRP and aramid strength components. External PVC or LSZH jacket.
The optical fibre branch cable is a kind of stranded multi-purpose cable. For example, it is widely used as indoor power distribution cables and backbone cables in buildings.
All tight cushioning fibres are wrapped and protected with aramid yarn. Tight cushioning fibre and aramid yarn are completed separately from the base jacket. Then, all fibre units revolve around fibre-reinforced plastic centre strength elements. Waterproof tape can be added between the stranded unit and the external PVC or LSZH sheath.



Features



Central FRP strength member
Stranded tight buffer fiber units provides excellent tensile performance
Corrosion resistant and waterproof outer sheath
Environment friendly jacket material
Flame retardant outer sheath for indoor and building safety application
Aramid yarn in tight buffer fibers also improves the tensile standard



Applications

Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.

  • Duplex optical fiber active link jumpers and pigtails;
  • Indoor shaft level and forced ventilation level wiring;
  • Interconnection of instruments and communication
